Before a single load of gravel goes down, a topographic survey shows you the shape of the ground you are working with. A driveway, a culvert, and a building pad all depend on the same thing, which is how the land rises, falls, and drains. Skip that step, and you risk a driveway that floods, a culvert in the wrong spot, or a pad that fights the slope. Map the ground first, and the whole design gets easier.

Think of this as a checklist. Each part connects to the next, so the goal is to capture the right information once and use it across the entire plan.

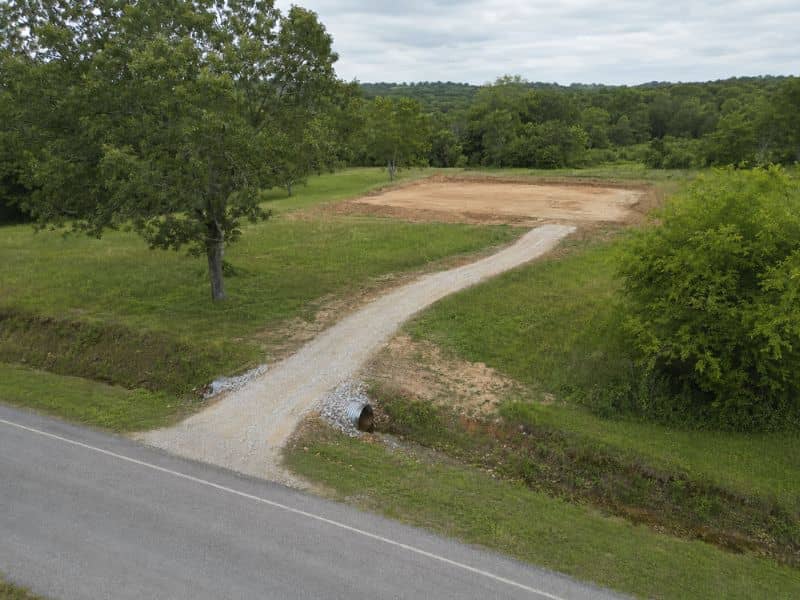

Start With the Route From the Road to the Proposed Building Area

The survey should follow the full path from the road to where the building will sit. That strip of land is your access, and it needs to work as one connected system. If the crew only shoots a few points near the house, you miss the dips and climbs along the way.

Capture the ground between the road and the pad as a continuous corridor. That way the designer sees the whole trip a vehicle, and later a fire truck, has to make. A driveway that looks fine on a flat sketch can turn steep or wet once you follow the real grade.

Access problems are much cheaper to fix on paper. When the corridor is mapped early, a designer can shift the route before any dirt moves.

What Elevation Data Matters Most for a New Driveway?

For a new driveway, the most useful data is the change in height from the road to the pad. Grade drives everything, because it controls how steep the drive feels and how water moves across it.

A few measurements make the design far more reliable:

• The elevation at the road connection, so the driveway ties in smoothly
• The high and low points along the route
• The percent of slope on the steepest sections
• Any dips or flat spots where water could pool
• The cross-slope, which is the tilt from one side of the drive to the other

With these in hand, a designer can set a grade a truck can climb and that sheds water instead of holding it. Guessing at slope is how you end up regrading a year later.

Culvert Locations Need More Than a Visual Guess

A culvert has to sit where water already wants to go, not where it looks tidy. Eyeballing a ditch is not enough. The survey should record ditch elevations, the direction of flow, and the shape of the ground on both sides of any crossing.

When the driveway cuts across a drainage path, that spot needs real numbers. Flow direction tells you which way to point the pipe. Ditch elevations tell you how deep to set it, so water passes under the drive instead of over it. Get this wrong, and the first heavy rain will show you.

Building Pad Planning Begins With Existing Ground

The pad is where the house lands, so it starts with the dirt already there. Surveyed contours and spot elevations let a designer see the natural high and low sides of the site. From there, they can pick a pad location that balances cut and fill, instead of hauling in truckloads of soil.

Comparing a few possible pad areas is smart. One spot might sit high and dry but far from the road. Another might be close but low. The survey lets you weigh those trade-offs with facts, before any concrete gets poured.

Good pad placement also protects your budget. Moving less dirt usually means a smaller grading bill and fewer surprises during construction.

How Does a Topographic Survey Connect Driveway and Pad Design?

The real value shows up when all the pieces work together. Access, grading, drainage, and the building location are not separate problems. They share the same ground, so a change to one affects the others.

Raise the pad, and the driveway grade shifts. Move the culvert, and the drainage pattern changes. When the designer works from one accurate topographic survey, these parts line up instead of fighting each other. That is why the survey comes first and the design follows.
